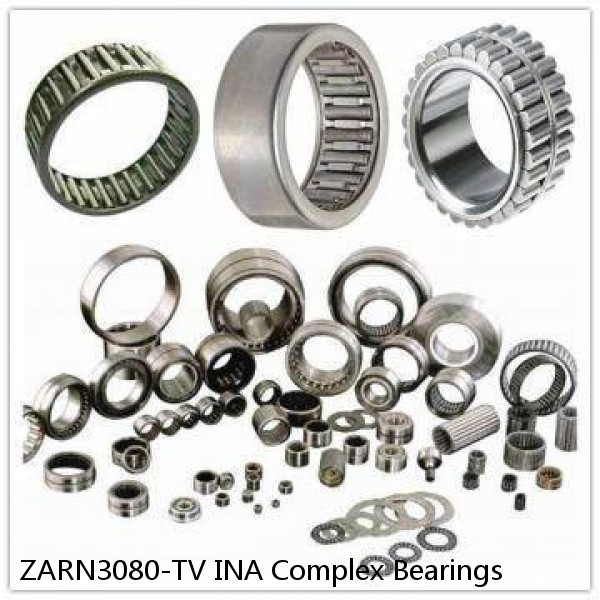

ZARN3080-TV INA Complex Bearings

Name: ZARN3080-TV INA Complex Bearings
Brand: INA
SKU: ZARN3080-TV
Rating: 4.9 (5 reviews)

INA ZARN3080-TV SPECIFICATIONS

ZARN3080-TV INA Complex Bearings Needs Analysis , Complex Bearings Manufacturing Service 0.0 Inventory . Get Your Free.
Brand Name:INA
Model Number:
ZARN3080-TV
Bearing number:7317 BEM
Size (mm):180x85x41
Bore Diameter (mm):180
Outer Diameter (mm):85
Width (mm):41
d:85 mm
D:180 mm
B:41 mm

Download INA ZARN3080-TV Spec Sheet

Singapore Bearing Distributor

Singapore Bearing DistributorChina

Singapore Bearing Distributor2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

ZARN3080-TV INA Complex Bearings Product Features

d1:122.3 mm
d2:103.03 mm
D1:144.95 mm
a:76 mm
r1,2 - min.:3 mm
r3,4 - min.:1.1 mm
da - min.:99 mm
Da - max.:166 mm
Db - max.:173 mm
ra - max.:2.5 mm
rb - max.:1 mm
Basic dynamic load rating - C:146 kN
Basic static load rating - C0:122 kN
Fatigue load limit - Pu:4.5 kN
Reference speed:4300 r/min
Limiting speed:4500 r/min
Calculation factor - kr:0.1
Calculation factor - ka:1.6
Calculation factor - e:1.14
Calculation factor - X:0.35
Calculation factor - Y0:0.26
Calculation factor - Y1:0.55
Calculation factor - Y2:0.57
Category:Angular Contact Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:4.84
Product Group:B00308
Enclosure:Open
Flush Ground:No
Rolling Element:Ball Bearing
Number of Rows of Balls:Single Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Brass
Contact Angle:40 Degree
Internal Clearance:C0-Medium
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:85MM Bore; 180MM Outside Diameter; 41MM Width; Open; No Flush Ground; Ball Bearing; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium; Brass Cage; 40 Degree; 1 (Single)
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:7317 BEM
Bore:3.346 Inch | 85 Millimeter
Outside Diameter:7.087 Inch | 180 Millimeter
Width:1.614 Inch | 41 Millimeter
d1 ≈:122.3 mm
d2 ≈:103.03 mm
D1 ≈:144.95 mm
r1,2 min.:3 mm
r3,4 min.:1.1 mm
da min.:99 mm
Da max.:166 mm
Db max.:173 mm
ra max.:2.5 mm
rb max.:1 mm
Basic dynamic load rating C:146 kN
Basic static load rating C0:122 kN
Fatigue load limit Pu:4.5 kN
Calculation factor A:0.27
Calculation factor kr:0.1
Calculation factor e:1.14
Calculation factor X:0.57
Calculation factor Y0:0.52
Calculation factor Y2:0.93
Calculation factor Y1:0.55
Mass bearing:4.45 kg
