Home>Products>Angular Contact Ball Bearings>CSED 1103) INA Angular Contact Ball Bearings image

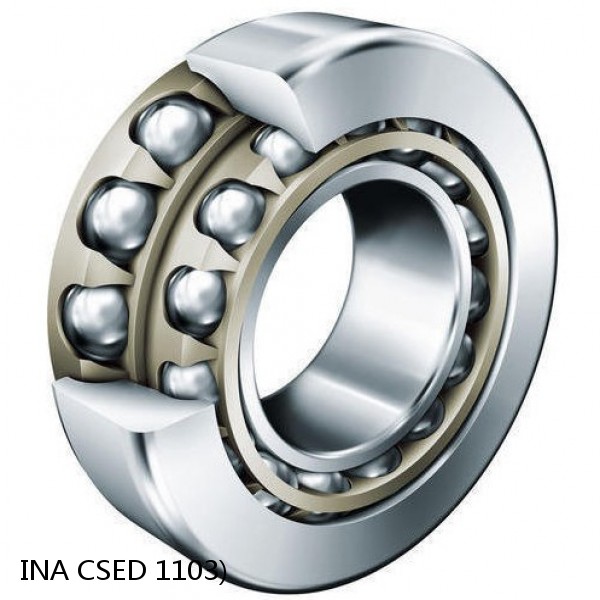

CSED 1103) INA Angular Contact Ball Bearings image

Back to product page

You Might Also Like

CSED 1103) INA Angular Contact Ball Bearings Sponsored Products Related To This Item

B - Cone Width:20.638 mm
C - Cup Width:14.288 mm
B:19.050 mm
R - Cone Backface To Clear Radius1:1.520 mm
r - Cup Backface To Clear Radius2:1.27 mm
da - Cone Frontface Backing Diameter:35.05 mm
db - Cone Backface Backing Diameter:37.08 mm
Da - Cup Frontface Backing Diameter:58.42 mm
Db - Cup Backface Backing Diameter:55.12 mm
Ab - Cage-Cone Frontface Clearance:1.8 mm
Aa - Cage-Cone Backface Clearance:0.8 mm
a - Effective Center Location3:-5.8 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:3490 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5:13500 lbf
C0 - Static Radial Rating:12100 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:2090 lbf
K - Factor7:1.67
e - ISO Factor8:0.35
Y - ISO Factor9:1.71
G1 - Heat Generation Factor (Roller-Raceway):14.6
G2 - Heat Generation Factor (Rib-Roller End):10
Cg - Geometry Factor:0.0606
