319040 A SKF Cylindrical Roller Bearings - Singapore Bearing Distributor

✖

Home>Products>Cylindrical Roller Bearings>319040 A SKF Cylindrical Roller Bearings image

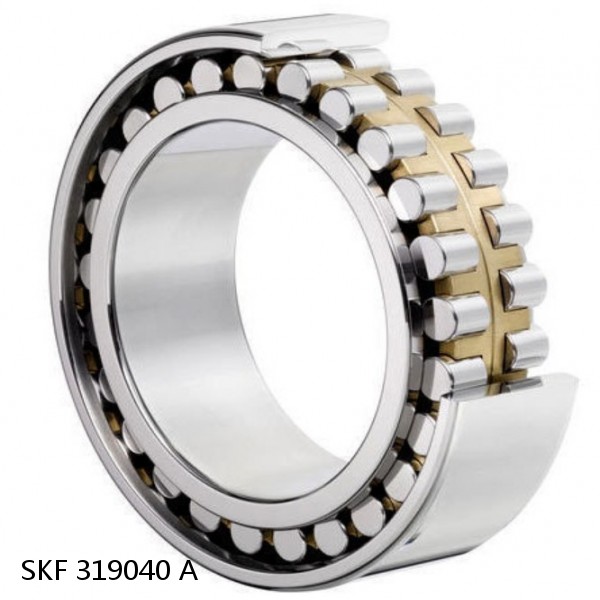

319040 A SKF Cylindrical Roller Bearings image

319040 A SKF Cylindrical Roller Bearings Description of the code

Rolling Element:Cylindrical Roller Bearing
Housing Material:Cast Iron
Expansion / Non-expansion:Expansion
Mounting Bolts:12 Millimeter
Relubricatable:Yes
Insert Part Number:MSM60BX
Seals:Triple Lip Labyrinth
Housing Configuration:2 Piece Split
Pilot Configuration:No Pilot
Inch - Metric:Metric
Long Description:4 Bolt Round Flange Block; 60MM Bore; 242MM Bolt Circle; 2 Piece Split; Clamp Collar Mount; Cast Iron; Cylindrical Roller Bearing; 72.3MM Length Thru Bore; 171.1MM Bolt Spacing; Relubricatable; Triple
Other Features:Single Row | Wide Inner Ring | Medium Duty
UNSPSC:31171501
Harmonized Tariff Code:8483.20.40.80
Noun:Bearing
Keyword String:Flanged
Weight / LBS:47.67
Nominal Bolt Circle Diameter Round:9.5 Inch | 242 Millimeter
d:2.362 Inch | 60 Millimeter
D:2.846 Inch | 72.3 Millimeter
Bolt Spacing:6.7 Inch | 171.1 Millimeter
Cartridge Pilot Diameter:0 Inch | 0 Millimeter
Cartridge Pilot Depth:0 Inch | 0 Millimeter
Shaft Size:60 mm
Seal Type:Aluminium Triple Labyrinth
Bearing Type:Split Cylindrical Expansion Type
Support Type:Round Flange
Series Type:Medium Series
Bolt Size:4 x M12
Bearing Number:MSM60BX
Bearing - Housing - Seal:MSM60BXHATL
Bearing - Housing - Seal UPC:013992043771
Bearing UPC:013992035028
Dimension T:11.3 in
Dimension R:9.5 in
Dimension P:0.6 in
Dimension H:2.9 in
Dimension N:7.563 in
Dimension V:0.1 in
Dimension L:5.4 in
Cr - Dynamic Load Rating:37768 lbf
Cor - Static Load Rating:42714 lbf
Maximum Speed:3680 rpm
Note:This product line was formerly known as “Revolvo”
