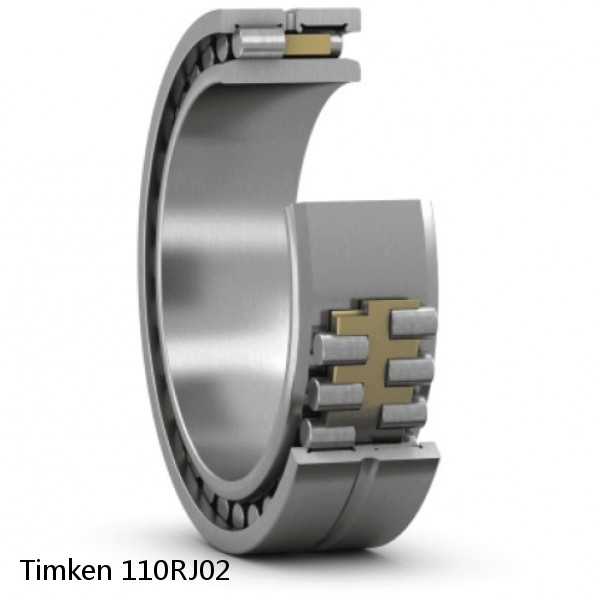

110RJ02 Timken Cylindrical Roller Bearings image

110RJ02 Timken Cylindrical Roller Bearings Description of the code

Cage Material:Polyamide
Precision Class:ABEC 1 | ISO P0
Internal Clearance:C0-Medium
Number of Rows of Balls:Double Row
Other Features:Allowable Misalignment 2.5 Deg | High Capacity Design
Long Description:20MM Bore; Shaft Mount; 47MM Outside Diameter; 14MM Inner Race Width; 14MM Outer Race Width; Open; Polyamide Cage; Double Row of Balls; ABEC 1 | ISO P0; C0-Medium
Inch - Metric:Metric
UNSPSC:31171532
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Self Aligning
Manufacturer Item Number:1204 ETN9
Weight / LBS:0.265
d:20 mm
Inner Race Width:0.551 Inch | 14 Millimeter
Outer Race Width:0.551 Inch | 14 Millimeter
D:47 mm
bore diameter::20 mm
precision rating::Not Rated
outside diameter::47 mm
maximum rpm::20000 RPM
overall width::14 mm
cage material::Fiberglass Reinforced Nylon
bore type::Straight
finish/coating::Uncoated
closure type::Open
maximum misalignment::2.5 °
internal clearance::C0
outer ring width::14 mm
dynamic load capacity::12.7 kN
fillet radius::1 mm
static load capacity::3.4 kN
series::1200
B:14 mm
d1 ≈:28.88 mm
D1 ≈:40 mm
r1,2 min.:1 mm
da min.:25.6 mm
Da max.:41.4 mm
ra max.:1 mm
Basic dynamic load rating C:12.7 kN
Basic static load rating C0:3.4 kN
Fatigue load limit Pu:0.18 kN
Reference speed:32000 r/min
Limiting speed:20000 r/min
Permissible angular misalignment α:2.5 °
Calculation factor kr:0.04
Calculation factor e:0.3
Calculation factor Y0:2.2
Calculation factor Y1:2.1
Calculation factor Y2:3.3
Mass bearing:0.12 kg
