Home>Products>Spherical Roller Bearings>20230-MB FAG Spherical Roller Bearings image

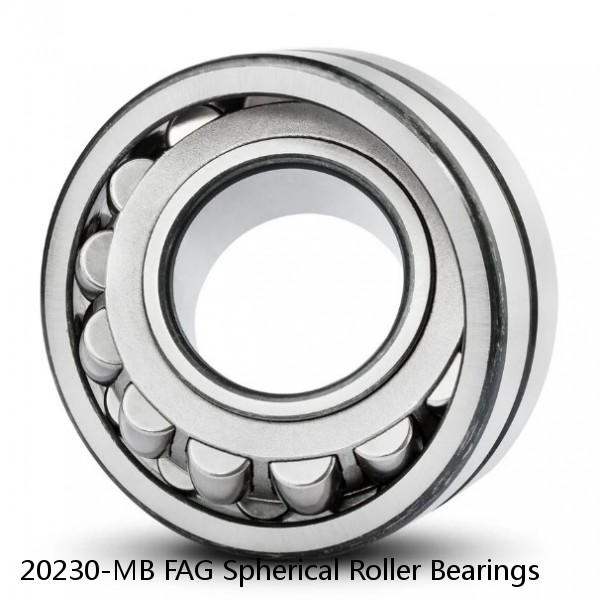

20230-MB FAG Spherical Roller Bearings image

Back to product page

You Might Also Like

Spherical Roller Bearings Cross References

C:39,700 mm
d1:62 mm
D1:86.5 mm
a:50.1 mm
Contact angle α:25 °
rs min:1.5 mm
Radial clearance class:CN
Precision class:P0
Mass:1.42 kg
Dynamic load, C:65.8 kN
Static load, C0:51 kN
Fatigue limit load, Cu:3.15 kN
f0:13.9
Nref:5,500 rpm
Nlim:5,300 rpm
Min operating temperature, Tmin:-20 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.4 Hz
Characteristic rolling element frequency, BSF:4.34 Hz
Characteristic outer ring frequency, BPF0:3.2 Hz
Characteristic inner ring frequency, BPFI:4.8 Hz
da min:53 mm
da max:62 mm
Da max:92 mm
ra max:1.5 mm
