Home>Products>Spherical Roller Bearings>120RUB4 NSK Spherical Roller Bearings image

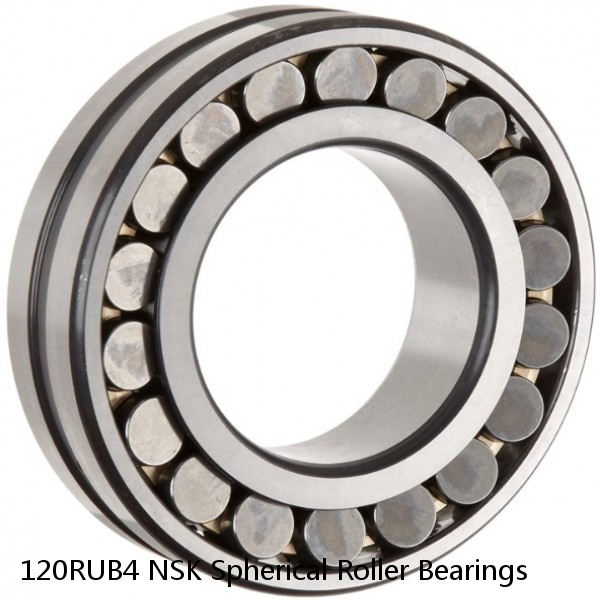

120RUB4 NSK Spherical Roller Bearings image

Back to product page

Spherical Roller Bearings Cross References

C:23 mm
Category:Cylindrical Roller Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.41
Product Group:B04270
Bore Profile:Tapered
Cage Material:Brass
Precision Class:ABEC 7 | ISO P4
Number of Rows of Rollers:Double Row
Separable:Outer Ring - Both Sides
Rolling Element:Cylindrical Roller Bearing
Profile:Complete with Outer and Inner Ring
Snap Ring:No
Internal Clearance:C1NA
Retainer:Yes
Relubricatable:Yes
Inch - Metric:Metric
Other Features:3 Rib Inner Ring | Plain Outer Ring | Precision Bearing | Cage on Inner Ring OD
Long Description:50MM Bore; Tapered Bore Profile; 80MM Outside Diameter; 23MM Width; Brass Cage Matetrial; ABEC 7 | ISO P4; Double Row; Outer Ring - Both Sides Separable; No Snap Ring; Relubricatable; C1NA Internal Cl
UNSPSC:31171547
Harmonized Tariff Code:8482.50.00.00
Noun:Bearing
Manufacturer Item Number:NN3010KC1NAP4
Weight / LBS:0.906
Bore:1.969 Inch | 50 Millimeter
Width:0.906 Inch | 23 Millimeter
Outside Diameter:3.15 Inch | 80 Millimeter
bore diameter::50 mm
precision rating::ISO Class 4
outside diameter::80 mm
maximum rpm::9400 rpm
overall width::23 mm
bearing material::Hardened Alloy Steel
flanges::(3) Inner Ring
cage material::High Strength, 2 piece, Machined Brass
bore type::Tapered 1:12
finish/coating::Uncoated
number of rows::2
closure type::Open
internal clearance::C1NA
resistance features::Clean Room, Vacuum
ring separation::Separable Outer Ring
outer ring width::23 mm
operating temperature range::-40 to 120 ºC
fillet radius::1 mm
dynamic load capacity::53000 N
series::NN30K
static load capacity::72500 N
manufacturer product page::Click here
