Home>Products>Tapered Roller Bearings>71217851 INA Tapered Roller Bearings image

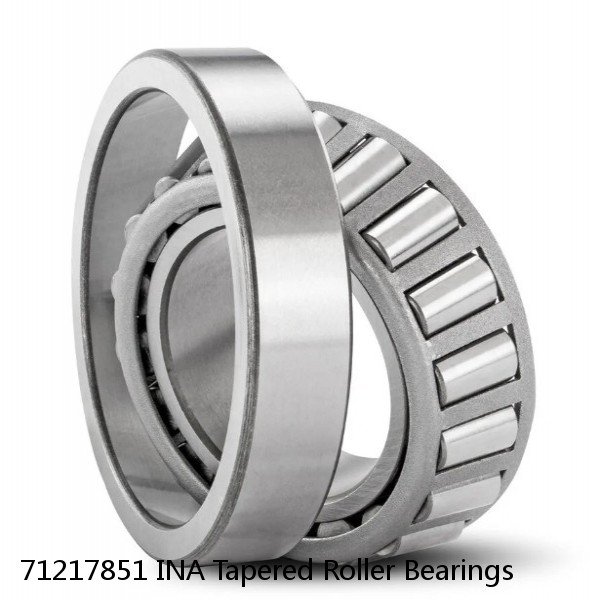

71217851 INA Tapered Roller Bearings image

Back to product page

You Might Also Like

71217851 INA Tapered Roller Bearings Systems

B - Cone Width:100.013 mm
C - Cup Width:77.788 mm
B:98.425 mm
R - Cone Backface To Clear Radius1:3.300 mm
r - Cup Backface To Clear Radius2:3.30 mm
da - Cone Frontface Backing Diameter:227.08 mm
db - Cone Backface Backing Diameter:230.89 mm
Da - Cup Frontface Backing Diameter:317.80 mm
Db - Cup Backface Backing Diameter:306.07 mm
Ab - Cage-Cone Frontface Clearance:3 mm
Aa - Cage-Cone Backface Clearance:10.4 mm
a - Effective Center Location3:-25.4 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:79000 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5:305000 lbf
C0 - Static Radial Rating:522000 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:45000 lbf
K - Factor7:1.76
e - ISO Factor8:0.33
Y - ISO Factor9:1.8
G1 - Heat Generation Factor (Roller-Raceway):1400
G2 - Heat Generation Factor (Rib-Roller End):135
Cg - Geometry Factor:0.147
