5066/05185-B Timken Tapered Roller Bearings - Singapore Bearing Distributor

✖

Home>Products>Tapered Roller Bearings>5066/05185-B Timken Tapered Roller Bearings image

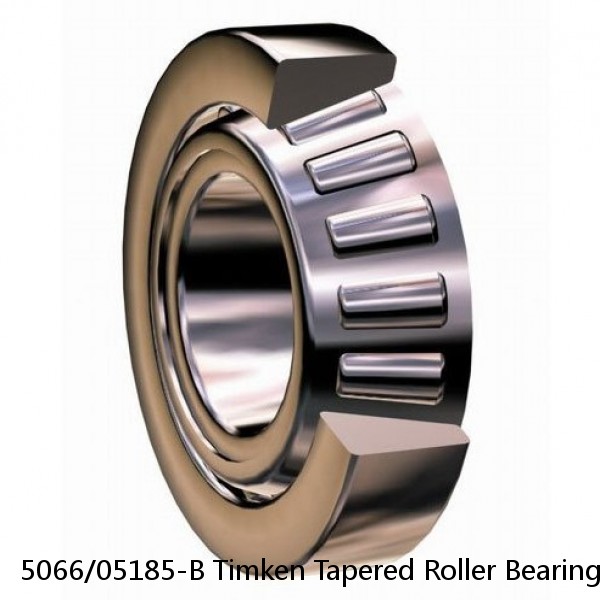

5066/05185-B Timken Tapered Roller Bearings image

5066/05185-B Timken Tapered Roller Bearings Systems

r5 min.:1,02 mm
Weight:0,127 Kg
Basic dynamic load rating (C):39,8 kN
Basic static load rating (C0):64,1 kN
(Grease) Lubrication Speed:13000 r/min
Category:Needle Non Thrust Roller Bearing
Inventory:5.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.13
Product Group:B04144
Rolling Element:Needle Roller Bearing
Component:Roller Assembly with Outer Ring - No Inner Ring
Enclosure:Open
Self Aligning:No
Retainer:Yes
Number of Rows of Rollers:Single Row
Separable:No
Closed End:No
Inch - Metric:Inch
Relubricatable:Yes
Thrust Bearing:No
Long Description:1-3/8" Bore; 1-7/8" Outside Diameter; 1" Width; Needle Roller Bearing; Roller Assembly with Outer Ring - No Inner Ring; Open Enclosure; No Self Aligning; Yes Retainer; Single Row of Rol
Other Features:2 Rib Outer Ring | Steel Cage | Heavy Duty | Oil Hole
UNSPSC:31171512
Harmonized Tariff Code:8482.40.00.00
Noun:Bearing
Keyword String:Needle
Manufacturer Item Number:HJ-223016
Weight / LBS:0.28
Width:1 Inch | 25.4 Millimeter
Outside Diameter:1.875 Inch | 47.625 Millimeter
Bore:1.375 Inch | 34.925 Millimeter
Bearing No.:HJ-223016
rs(min):1.02
Used with inner ring No.:IR-182216
Cr:25.4
C0r:64.1
Cu:10.1
Grease lub.:8200
Oil lub.:13000
(Refer.)Mass(kg):0.127
Clearance fit S(h6)(max.):34.925
Clearance fit S(h6)(min.):34.910
Clearance fit H(H7)(max.):47.650
Clearance fit H(H7)(min.):47.625
Tight transition fit S(f6)(max.):34.900
Tight transition fit S(f6)(min.):34.884
Tight transition fit H(N7)(max.):47.617
Tight transition fit H(N7)(min.):47.592
Da:42.88
