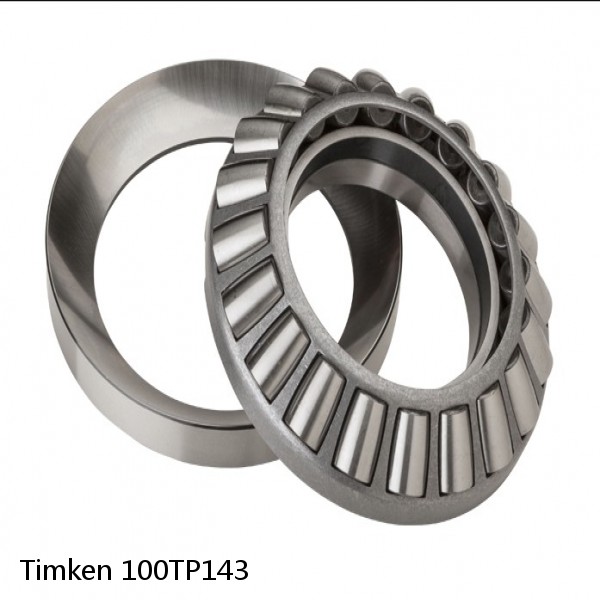

100TP143 Timken Thrust Roller Bearings image

100TP143 Timken Thrust Roller Bearings Dimensions

Bore Profile:Tapered
Cage Material:Bronze
Enclosure:Open
Number of Rows of Rollers:Double Row
Relubricatable:Yes
Withdrawal Sleeve:AH3184 AOH3184 (Specify bore)
Inch - Metric:Metric
Long Description:420MM Tapered Bore; 700MM Outside Diameter; 224MM Width; C0-Medium Clearance; Adapter Mount; Double Row of Spherical Roller Bearings; Bronze Cage Material; Open Enclosure; Relubricatable; Adapter Part
Other Features:Order adapter or withdrawal sleeve or nut separately. Others may be available
UNSPSC:31171510
Harmonized Tariff Code:8482.30.80.00
Noun:Bearing
Keyword String:Spherical
Manufacturer Item Number:23184 KYMBW906A
Weight / LBS:747.6
d:16.535 Inch | 420 Millimeter
B:8.819 Inch | 224 Millimeter
D:27.559 Inch | 700 Millimeter
Adapter Part Number:SNP3184 (Specify bore) Inch | H3184 (Specify bore) Millimeter
Design Unit:METRIC
Bore Taper:1/12
Bearing Weight:350.800 Kg
Cage Type:YMB
UPC Code:087796141377
d - Bore:420.000 mm
D - Outer Diameter:700.000 mm
B - Inner Ring Width:224 mm
B - Outer Ring Width:224.000 mm
R - Inner Ring To Clear Radius1:5.000 mm
r - Outer Ring To Clear Radius2:5.000 mm
da - Inner Ring Backing Diameter:480.000 mm
Da - Outer Ring Backing Diameter:636.000 mm
C0 - Static Radial Rating:9640000 N
C1(2) - Dynamic Radial Rating (Two-Rows):5720000 N
e - ISO Factor3:0.31
Y0 - ISO Factor4:2.21
Y1 - ISO Factor5:3.2
Y2 - ISO Factor6:2.16
Reference Thermal Speed Rating (Grease):440
Reference Thermal Speed Rating (Oil)7:480
Cg - Geometry Factor8:0.0957
