Home>Products>Thrust Roller Bearings>K.81108LPB Timken Thrust Roller Bearings image

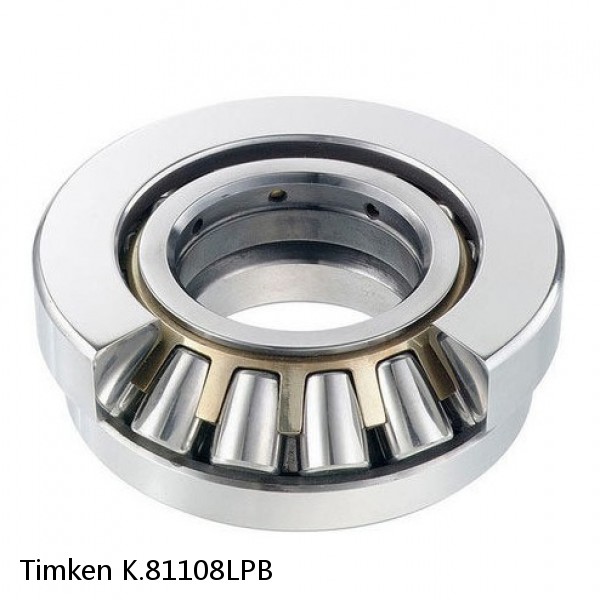

K.81108LPB Timken Thrust Roller Bearings image

Back to product page

You Might Also Like

K.81108LPB Timken Thrust Roller Bearings Dimensions

Radial clearance class:C5
Mass (without HJ ring):0.6 kg
Dynamic load, C:76 kN
Static load, C0:84.5 kN
Fatigue limit load, Cu:10.3 kN
Nlim (oil):8,000 rpm
Nlim (grease):6,800 rpm
Min operating temperature, Tmin:-20 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.42 Hz
Characteristic rolling element frequency, BSF:5.79 Hz
Characteristic outer ring frequency, BPF0:6.24 Hz
Characteristic inner ring frequency, BPFI:8.76 Hz
da min:51.5 mm
da max:54 mm
dc min:61 mm
Da max:78.5 mm
ra max:1 mm
Category:Bearings
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.529
Product Group:B04144
