Home>Products>Thrust Roller Bearings>T112 Timken Thrust Roller Bearings image

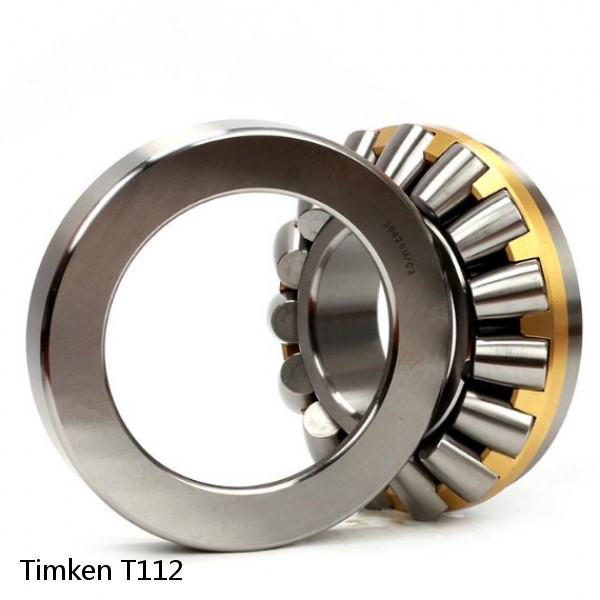

T112 Timken Thrust Roller Bearings image

Back to product page

You Might Also Like

T112 Timken Thrust Roller Bearings Dimensions

d1:596 mm
r min.:6 mm
A:225 mm
B1:44 mm
B2:127 mm
C:64 mm
D1:494 mm
da min.:500 mm
Da max.:550 mm
ra max.:5 mm
Weight:146 Kg
Basic dynamic load rating (C):3550 kN
Basic static load rating (C0):16300 kN
Bore Type:Cylindrical Bore
Enclosure:Open
Configuration:Single Row
Bore Size:400 mm
Outside Diameter:620 mm
Fillet Radius/Chamfer:6 mm
Width:132 mm
Dynamic Load Rating:3,550,000 N
Static Load Rating:16,300,000 N
Limiting Speed - Oil:530 rpm
B:44 mm
da (min):500 mm
Da (max):550 mm
ra (max):5 mm
