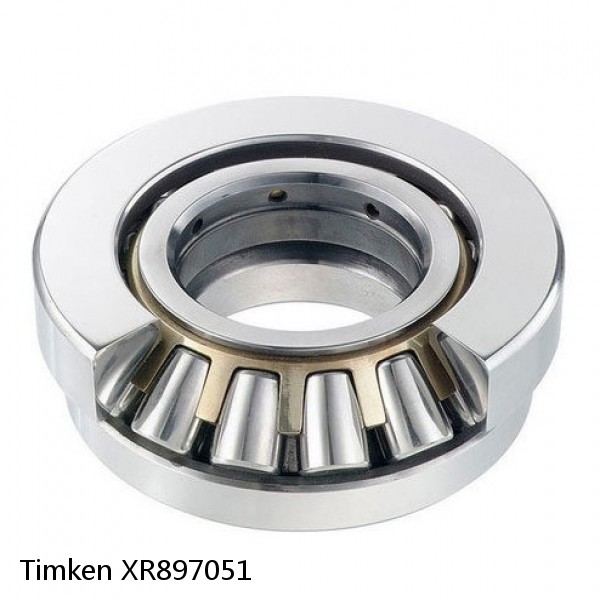

XR897051 Timken Thrust Roller Bearings image

Back to product page

You Might Also Like

XR897051 Timken Thrust Roller Bearings Dimensions

B - Cone Width:65.500 mm
C - Cup Width:48.500 mm
B:67.500 mm
R - Cone Backface To Clear Radius1:4.060 mm
r - Cup Backface To Clear Radius2:3.05 mm
da - Cone Frontface Backing Diameter:109.98 mm
db - Cone Backface Backing Diameter:118.11 mm
Da - Cup Frontface Backing Diameter:179.10 mm
Db - Cup Backface Backing Diameter:170.94 mm
Ab - Cage-Cone Frontface Clearance:3.8 mm
Aa - Cage-Cone Backface Clearance:9.9 mm
a - Effective Center Location3:-22.9 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:150000 N
C1 - Dynamic Radial Rating (1 million revolutions)5:578000 N
C0 - Static Radial Rating:692000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:85900 N
K - Factor7:1.74
e - ISO Factor8:0.33
Y - ISO Factor9:1.79
G1 - Heat Generation Factor (Roller-Raceway):265.6
G2 - Heat Generation Factor (Rib-Roller End):28.4
Cg - Geometry Factor:0.107
