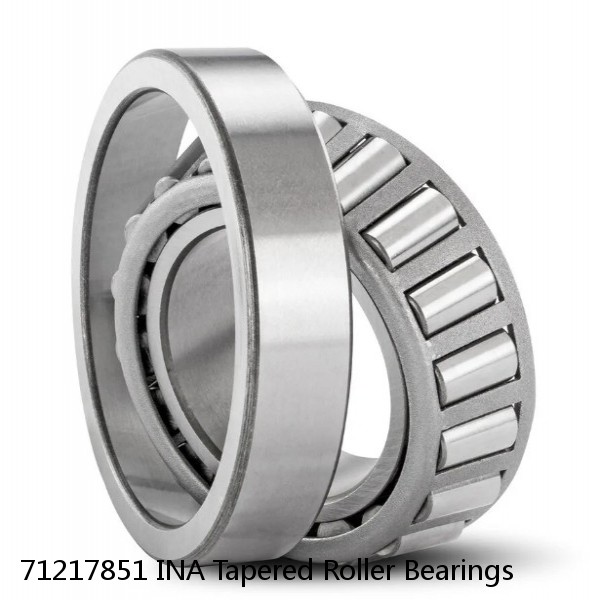

71217851 INA Tapered Roller Bearings

Name: 71217851 INA Tapered Roller Bearings
Brand: INA
SKU: 71217851
Rating: 4.9 (5 reviews)

INA 71217851 SPECIFICATIONS

170 Million used This product line wa Note 71217851 INA Tapered Roller Bearings instantly searchable. Shop our large selection of parts based on brand, Split Cylindrical Ex Bearing Type price, description, 1070 rpm Maximum Speed and location. Order the Tapered Roller Bearings with stock ...
Brand Name:INA
Model Number:
71217851
Series:H242600
Cone Part Number:H242649
Cup Part Number:H242610
Design Units:Imperial
Bearing Weight:33.20 Kg
Cage Type:Stamped Steel
d:206.375 mm
D:336.550 mm

Singapore Bearing Distributor

Singapore Bearing DistributorChina

Singapore Bearing Distributor2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

71217851 INA Tapered Roller Bearings Systems

B - Cone Width:100.013 mm
C - Cup Width:77.788 mm
B:98.425 mm
R - Cone Backface To Clear Radius1:3.300 mm
r - Cup Backface To Clear Radius2:3.30 mm
da - Cone Frontface Backing Diameter:227.08 mm
db - Cone Backface Backing Diameter:230.89 mm
Da - Cup Frontface Backing Diameter:317.80 mm
Db - Cup Backface Backing Diameter:306.07 mm
Ab - Cage-Cone Frontface Clearance:3 mm
Aa - Cage-Cone Backface Clearance:10.4 mm
a - Effective Center Location3:-25.4 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:79000 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5:305000 lbf
C0 - Static Radial Rating:522000 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:45000 lbf
K - Factor7:1.76
e - ISO Factor8:0.33
Y - ISO Factor9:1.8
G1 - Heat Generation Factor (Roller-Raceway):1400
G2 - Heat Generation Factor (Rib-Roller End):135
Cg - Geometry Factor:0.147

INA 71217851 Tapered Roller Bearings Product Description

No.	Brand	C	A	J	d	a	S	H	N
2473X/02419	Timken	-	-	-	140 mm	-	-	-	-
22230 CCK/W33 + AHX 3130 G	SKF	-	-	-	460.000 mm	-	-	-	-
160KBE030+L	NSK	-	-	-	-	-	-	-	-
170KBE30+L	NSK	-	-	-	-	-	-	-	-
1380/1328/Q	SKF	-	-	-	120 mm	-	-	-	-
23122 CCK/W33 + AHX 3122	SKF	-	-	-	50.0000 mm	-	-	-	-
2474/02420B	Timken	-	-	-	7.0000 in	-	-	-	-
22314 EK/VA405	SKF	-	-	-	-	-	-	-	-
140KBE031+L	NSK	-	-	-	50 mm	-	-	-	-
30205-A	FAG	-	-	-	17mm	-	-	-	-
140KBE2201+L	NSK	-	-	-	170 mm	-	-	-	-
11163/11300/Q	SKF	-	-	-	160mm	-	-	-	-
30315-A	FAG	-	-	-	80mm	-	-	-	-
2872/02820/Q	SKF	-	-	-	2.9523 in	-	-	-	-
2476/02420-B	Timken	-	-	-	100mm	-	-	-	-
150KBE30+L	NSK	-	-	-	0.6250 in	-	-	-	-
71215301	INA	-	-	-	-	-	-	-	-
30220-A-DF-A250-28	FAG	-	-	-	25mm	-	-	-	-
160KBE2801+L	NSK	-	-	-	1.1875 in	-	-	-	-
160KBE2401+L	NSK	-	-	-	3.3750 in	-	-	-	-
30232-N11CA	FAG	-	-	-	-	-	-	-	-

71217851 INA Tapered Roller Bearings Video

30220-A-DF-A220-27 FAG Tapered Roller Bearings	Category:Mounted Units & Inserts; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:4.05; Product Group:M06110;
7100-S/07196D+X1S-071 Timken Tapered Roller Bearings	Bearing number:RT740; Dimensione (mm):127x254x50.8; Diametro del foro (mm):127; Diametro esterno (mm):254; Larghezza (mm):50,8; d:127 mm; D:254 mm; T:50,8 mm; m:13,35 kg / Weight; Ca:910000 N / Dynamic load rating (axial); C0a:3300000 N / Static load rating (axial); Categoria:Bearings; Inventario:0.0; Nome del produttore:SCHAEFFLER GROUP; Quantità minima di acquisto:N/A; Peso / Chilogrammo:15.98;
30209-A FAG Tapered Roller Bearings	Bearing number:323026; Size (mm):130x200x52; Bore Diameter (mm):130; Outer Diameter (mm):200; Width (mm):52; d:130 mm; Fw:1 400 mm; D:200 mm; T:52 mm; B:52 mm; a:13,5 mm; r min.:2 mm; r1 min.:2,5 mm; Weight:5,92 Kg; Basic dynamic load rating (C):294 kN; Basic static load rating (C0):490 kN; Calculation factor (e):0,37; Calculation factor (Y0):1,76; Calculation factor (Y1):1,8;
2475/02420B Timken Tapered Roller Bearings	Category:Ball Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:0.02; Product Group:B00308;
5079/05185-S Timken Tapered Roller Bearings	Category:Pillow Block; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:10.442; Product Group:M06288; Number of Mounting Holes:2; Mounting Method:Concentric Collar; Housing Style:2 Bolt Pillow Block; Rolling Element:Spherical Roller Bearing; Housing Material:Cast Steel; Expansion / Non-expansion:Expansion; Mounting Bolts:7/8 Inch; Relubricatable:Yes; Insert Part Number:22215; Seals:Triple Lip Urethane;
14137 A/14276/Q SKF Tapered Roller Bearings	Width:0.250 in; Weight:0.32 lbs; Seal Type:Single Lip without Spring; Design Type:34; Lip Material:Nitrile; Solid / Split:Solid; Shaft Diameter:3.500 in; Outside Diameter:4.508 in; Typical Application:General Purpose; Misalignment Tolerance:0.005 in; Construction Description:Non-Spring Loaded Seal For Grease Retention; Maximum Shaft Surface Speed:2000 fpm; Continuous Temperature Range:-40 to 225°F;
201072 FAG Tapered Roller Bearings	Category:Flange Block; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:7.718; Product Group:M06288; Number of Mounting Holes:4; Mounting Method:Eccentric Collar; Housing Style:4 Bolt Square Flange Block; Rolling Element:Spherical Roller Bearing; Housing Material:Cast Steel; Expansion / Non-expansion:Non-expansion; Mounting Bolts:3/4 Inch; Relubricatable:Yes; Insert Part Number:22215; Seals:Double Lip Viton;
7100-S/07205 Timken Tapered Roller Bearings	Category:Mounted Cartridge Units; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:45.95; Product Group:M06288; Mounting Method:Clamp Collar; Housing Style:Cartridge Unit; Housing Material:Cast Iron; Rolling Element:Cylindrical Roller Bearing; Expansion / Non-expansion:Non-expansion; Relubricatable:Yes; Insert Part Number:02 B 500; Seals:Triple Lip Labyrinth; Other Features:Single Row \| Split Roller \| Heavy Duty \| Aluminum Seal;
22334 CC/W33 SKF Tapered Roller Bearings	SKU:22209emw33-timken; Availability:In Stock; Weight:0.60 KGS; d:45mm; D:85mm; B:23mm; Dynamic Load Rating (kN):104; Static Load Rating (kN):101; Limiting Speed Rating (r/min):5600; Reference Speed Rating (r/min):6900; Cage Type:Brass; Seals or Shields:Open Type; Clearance:Standard;
7100-SA/07196D+X1S-071 Timken Tapered Roller Bearings	Category:Mounted Units & Inserts; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:4.295; Product Group:M06288;
71217941 INA Tapered Roller Bearings	Category:Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:0; Product Group:B00308;
170KBE30+L NSK Tapered Roller Bearings	Bearing number:NF2334; Dimensione (mm):170x360x120; Diametro del foro (mm):170; Diametro esterno (mm):360; Larghezza (mm):120; d:170 mm; D:360 mm; B:120 mm; C:120 mm;
