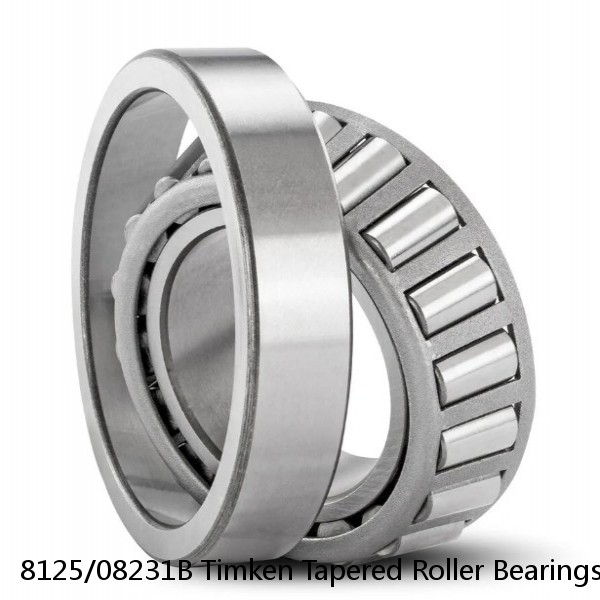

8125/08231B Timken Tapered Roller Bearings

Name: 8125/08231B Timken Tapered Roller Bearings
Brand: Timken
SKU: 8125/08231B
Rating: 4.9 (5 reviews)

Timken 8125/08231B SPECIFICATIONS

8125/08231B Timken Tapered Roller Bearings manufacturer and Steel Cage Type: global supplier of reliable ball and roller ... 8125/08231B Timken Tapered Roller Bearings Industries Products Manufacturing & Engineering 0.63 KGS Weight: and Agricultural Bearings designed to meet the unique 9300 Reference Speed Rating (r/min): requirements of our targeted industries.
Brand Name:Timken
Model Number:
8125/08231B
Series:33024
Cone Part Number:X33024P
Cup Part Number:Y33024P
Design Units:METRIC
Bearing Weight:4.2 Kg
Cage Type:Stamped Steel
d:120 mm
D:180 mm

Singapore Bearing Distributor

Singapore Bearing DistributorChina

Singapore Bearing Distributor2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

8125/08231B Timken Tapered Roller Bearings Systems

B - Cone Width:48 mm
C - Cup Width:38 mm
B:48.000 mm
R - Cone Backface To Clear Radius1:2.540 mm
r - Cup Backface To Clear Radius2:2.03 mm
da - Cone Frontface Backing Diameter:130.05 mm
db - Cone Backface Backing Diameter:134.11 mm
Da - Cup Frontface Backing Diameter:172 mm
Db - Cup Backface Backing Diameter:166.12 mm
Ab - Cage-Cone Frontface Clearance:3.3 mm
Aa - Cage-Cone Backface Clearance:3.8 mm
a - Effective Center Location3:-11.9 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:108000 N
C1 - Dynamic Radial Rating (1 million revolutions)5:418000 N
C0 - Static Radial Rating:603000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:56600 N
K - Factor7:1.91
e - ISO Factor8:0.31
Y - ISO Factor9:1.97
G1 - Heat Generation Factor (Roller-Raceway):342
G2 - Heat Generation Factor (Rib-Roller End):93.7
Cg - Geometry Factor:0.113

Timken 8125/08231B Tapered Roller Bearings Product Description

No.	Brand	C	A	J	d	a	S	H	N
30211-XL	FAG	-	-	-	95mm	-	-	-	-
1982F/2/QCL7C/1924A/2/QCL7CVQ081	SKF	-	-	-	160mm	-	-	-	-
7093/07210X	Timken	-	-	-	17mm	-	-	-	-
201084	FAG	-	-	-	30.0000 in	-	-	-	-
180KBE031+L	NSK	-	-	-	12 in	-	-	-	-
30212-XL-DF-A100-14	FAG	-	-	-	-	-	-	-	-
160KBE42+L	NSK	-	-	-	26mm	-	-	-	-
71215301	INA	-	-	-	-	-	-	-	-
30221-A	FAG	-	-	-	65mm	-	-	-	-
160KBE2401+L	NSK	-	-	-	3.3750 in	-	-	-	-
30206-A	FAG	-	-	-	40mm	-	-	-	-
30204-XL	FAG	-	-	-	100mm	-	-	-	-
30211-A	FAG	-	-	-	5.2500 in	-	-	-	-
110KBE031+L	NSK	-	-	-	170 mm	-	-	-	-
7098/07196D+X1S-07097	Timken	-	-	-	90 mm	-	-	-	-
30315-A	FAG	-	-	-	80mm	-	-	-	-
30221-XL	FAG	-	-	-	70mm	-	-	-	-
23184 CKJ/W33 + AOH 3184 G	SKF	-	-	-	34.976 mm	-	-	-	-
9081/09195AB	Timken	-	-	-	40 mm	16.2 mm	-	-	-
15101/15245	SKF	-	-	-	-	-	-	-	-
140KBE031+L	NSK	-	-	-	50 mm	-	-	-	-
140KBE43+L	NSK	-	-	-	190 mm	-	-	-	-
5079/05185A	Timken	-	-	-	-	-	-	-	-
22214 EK + AH 314 G	SKF	-	-	-	-	-	-	-	-
21316 EK + AH 316	SKF	-	-	-	30mm	-	-	-	-
7097/07204	NSK	-	-	-	90 mm	-	-	-	-
30220-A-DF-A220-27	FAG	-	90.00 mm	170.00 mm	-	-	-	113.00 mm	15 mm
150KBE030+L	NSK	-	-	-	20.627 mm	-	-	-	-
170KBE2501+L	NSK	-	-	-	20mm	-	-	-	-

8125/08231B Timken Tapered Roller Bearings Video

7079/07204 NSK Tapered Roller Bearings	Category:Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:0; Product Group:M06110;
30220-A-DF-A250-28 FAG Tapered Roller Bearings	Bearing number:RNA4901R; Size (mm):16x24x13; Bore Diameter (mm):16; Outer Diameter (mm):24; Width (mm):13; Fw:16 mm; D:24 mm; C:13 mm; r min.:0,3 mm; Da max.:22 mm; ra max.:0,3 mm; Weight:0,017 Kg; Basic dynamic load rating (C):9,55 kN; Basic static load rating (C0):10,9 kN; (Grease) Lubrication Speed:15000 r/min; rs min:0.3 mm; Dw:2.5 mm; Lw:9.8 mm; Lubrication hole on outer ring:Oui/Yes; k:2.5 mm;
71215301 INA Tapered Roller Bearings	SKU:1308em-qbl; Availability:In Stock; Weight:0.02 KGS; d:40mm; D:90mm; B:23mm; Cage Type:Brass; Seals or Shields:Open Type; Clearance:Standard;
2474/02420B Timken Tapered Roller Bearings	Category:Thrust Ball Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:0; Product Group:B00308; Rolling Element:Ball Bearing; Thrust Bearing:Yes; Single or Double Direction:Double Direction; Banded:No; Cage Material:Steel; Precision Class:ABEC 1 \| ISO P0; Component Description:Roller Assembly Plus Raceways; Other Features:Double Row \| With Flat Seat; Long Description:120MM Bore 1; 143MM Bore 2; 200MM Outside Diameter; 86.2MM Height; Ball Bearing; Double Direction; Not Banded; Steel Cage; ABEC 1 \| ISO P0 Precision;
7100S/07210X/Q SKF Tapered Roller Bearings	Category:Mounted Units & Inserts; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:4.082; Product Group:M06288;
23132 CCK/W33 + AH 3132 G SKF Tapered Roller Bearings	Bearing number:7032CVUJ74; Size (mm):160x240x38; Bore Diameter (mm):160; Outer Diameter (mm):240; Width (mm):38; d:160 mm; D:240 mm; B:38 mm; C:38 mm; Angle (α):15 °; d1:185.7 mm; D1:214.32 mm; D2:226.65 mm; a:46 mm; Contact angle α:15 °; rs min:2.1 mm; r1s min:1 mm; f0:16.04; Precision class:P4; Mass:5.13 kg; Dynamic load, C:176 kN; Static load, C0:202 kN; Fatigue limit load, Cu:7.6 kN;
230/900 CAK/W33 SKF Tapered Roller Bearings	Category:Angular Contact Ball Bearing; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:0.131; Product Group:B00308; Enclosure:Open; Flush Ground:No; Rolling Element:Ball Bearing; Number of Rows of Balls:Single Row; Precision Class:ABEC 3 \| ISO P6; Maximum Capacity / Filling Slot:No; Snap Ring:No; Cage Material:Bronze; Contact Angle:40 Degree; Internal Clearance:CB; Number of Bearings:1 (Single); Inch - Metric:Metric;
170KBE2802+L NSK Tapered Roller Bearings	Category:Flange Block; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:52.21; Product Group:M06288; Number of Mounting Holes:6; Mounting Method:Concentric Collar; Housing Style:6 Bolt Round Flange Block; Rolling Element:Spherical Roller Bearing; Housing Material:Cast Steel; Expansion / Non-expansion:Non-expansion; Mounting Bolts:1 Inch; Relubricatable:Yes; Insert Part Number:22226; Seals:Double Lip Nitrile Rubber;
23184 CKJ/W33 + AOH 3184 G SKF Tapered Roller Bearings	Bearing number:AST20 11095; Diametro del foro (mm):110; Diametro esterno (mm):115; Tipo di cuscinetto:straight; Diametro albero, nominale (d):110.0000; Dimensione dell'albero (ds) - 110 +0 / -0.054:110 +0 / 0.054; Alesaggio dell'alloggiamento Dia. (Dh) - 115 +0.035 / -0:115 +0.035 / 0; Diametro esterno del cuscinetto, nominale (Do):115.000; Tolleranza del diametro esterno del cuscinetto (Do tol.):115.120 / 115.070;
160KBE43+L NSK Tapered Roller Bearings	Category:Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:15; Product Group:M06110;
5079/05185-S Timken Tapered Roller Bearings	Category:Pillow Block; Inventory:0.0; Minimum Buy Quantity:N/A; Weight:10.442; Product Group:M06288; Number of Mounting Holes:2; Mounting Method:Concentric Collar; Housing Style:2 Bolt Pillow Block; Rolling Element:Spherical Roller Bearing; Housing Material:Cast Steel; Expansion / Non-expansion:Expansion; Mounting Bolts:7/8 Inch; Relubricatable:Yes; Insert Part Number:22215; Seals:Triple Lip Urethane;
22326-2CS5K/VT143 + H 2326 SKF Tapered Roller Bearings	Category:Bearings; Inventory:0.0; Minimum Buy Quantity:N/A; Weight / US pound:3.19; Product Group:B00308; Bearing No.:6832 2RD; d:160; D:200; B:20; r(min):1.1; Cr:60.5; C0r:56.9; Cu:2.20; f0:16.1; Grease lub.:2900; da(min):166.5; da(max):168.5; Da(max):193.5; ra(max):1; (Refer.)Mass(Open type)(kg):1.45;
